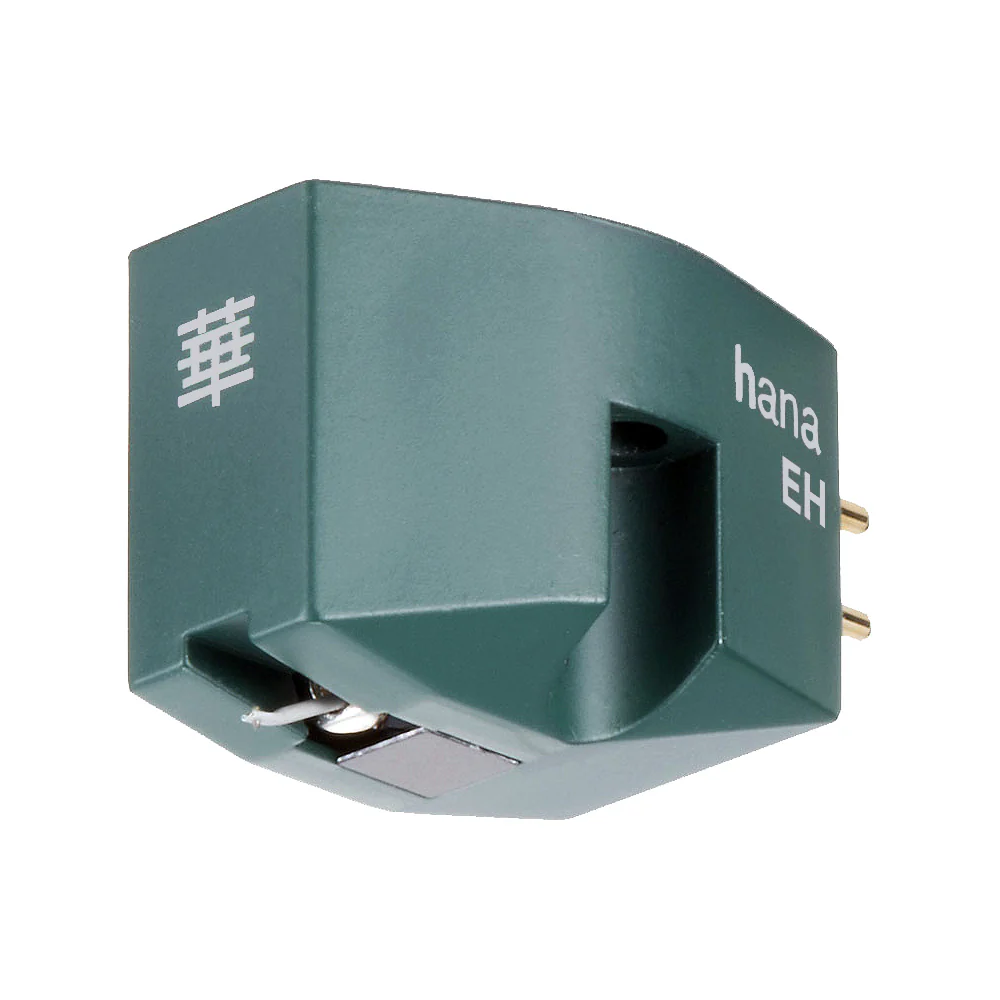

HANA EH MC Cartridge Synthetic Elliptical stylus: High Output
The Hana EL cartridge has a synthetic Elliptical diamond stylus fitted to a high rigidity aluminium cantilever with cross-shaped armature, offering super transparency and excellent trackability. The body is manufactured from a composite low resonance plastic material in dark green.
This competitively priced Low output moving coil cartridge offers great quality sound referenced against similar priced cartridges. The EL (Elliptical Low output) offers 0.5mv/1KHz output.
| Model | Hana EH |
| Stylus | Synthetic Elliptical |
| Cantilever | Aluminium |
| Output Level | 2mV/1kHz |
| Output Balance | <2dB/1kHz |
| Vertical Tracking Force | 2 gr. |
| Trackability | 70μm/2gr. |
| Channel Separation | 25dB/1kHz |
| Frequency Response | 15~25,000Hz |
| Impedance | 130Ω/1kHz |
| Suggested Load Impedance | 47kΩ |
| Cartridge Weight | 5 gr. |
| Body Color | Moss Green |
The Hana EL cartridge has a synthetic Elliptical diamond stylus fitted to a high rigidity aluminium cantilever with cross-shaped armature, offering super transparency and excellent trackability. The body is manufactured from a composite low resonance plastic material in dark green.
This competitively priced Low output moving coil cartridge offers great quality sound referenced against similar priced cartridges. The EL (Elliptical Low output) offers 0.5mv/1KHz output.
| Model | Hana EH |
| Stylus | Synthetic Elliptical |
| Cantilever | Aluminium |
| Output Level | 2mV/1kHz |
| Output Balance | <2dB/1kHz |
| Vertical Tracking Force | 2 gr. |
| Trackability | 70μm/2gr. |
| Channel Separation | 25dB/1kHz |
| Frequency Response | 15~25,000Hz |
| Impedance | 130Ω/1kHz |
| Suggested Load Impedance | 47kΩ |
| Cartridge Weight | 5 gr. |
| Body Color | Moss Green |
Description
The Hana EL cartridge has a synthetic Elliptical diamond stylus fitted to a high rigidity aluminium cantilever with cross-shaped armature, offering super transparency and excellent trackability. The body is manufactured from a composite low resonance plastic material in dark green.
This competitively priced Low output moving coil cartridge offers great quality sound referenced against similar priced cartridges. The EL (Elliptical Low output) offers 0.5mv/1KHz output.
| Model | Hana EH |
| Stylus | Synthetic Elliptical |
| Cantilever | Aluminium |
| Output Level | 2mV/1kHz |
| Output Balance | <2dB/1kHz |
| Vertical Tracking Force | 2 gr. |
| Trackability | 70μm/2gr. |
| Channel Separation | 25dB/1kHz |
| Frequency Response | 15~25,000Hz |
| Impedance | 130Ω/1kHz |
| Suggested Load Impedance | 47kΩ |
| Cartridge Weight | 5 gr. |
| Body Color | Moss Green |
